Our Projects

Home Projects

Shell-N-Tube Projects

ISRO

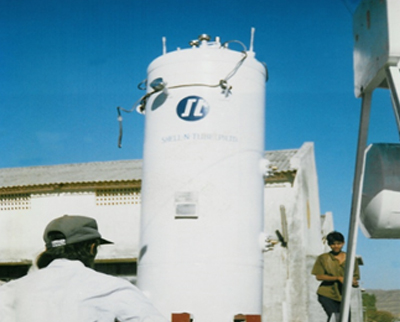

LOX - GHe Cooler in LN2 Bath

LOX - GHe Cooler in LN2 Bath

ISRO, Mahendragiri

  • It is for cooling Liquid Oxygen as well as gaseous Helium using liquid nitrogen.
  • It has a vertical super insulated liquid nitrogen tank in which the cooling coils are immersed.
  • Two sets cooling coils, one for LOX and another for GHe are immersed in the liquid nitrogen.
  • This was supplied to LPSC, Mahendragiri for Steering Engine Test Facility in 1998 and is in use since.
  • This was an import substitute.

    • ISRO

    LH2-GHe HEAT EXCHANGER

    LH2-GHe HEAT EXCHANGER

    ISRO, Mahendragiri

  • LH2 Heat Exchanger involving Liquid Hydrogen Tank of capacity 7500 litres for cooling two stream of gaseous helium with LH2 as a coolant.
  • One coil at 0.8MPa(a) and other at 2 MPa(a)
  • Inlet 80K, outlet at 22 K with
  • GHe flow rate of 36 gm/s at pressure 0.8 MPa(a)in one coil & 12 gm/se at pressure 2 MPa(a) in second coil.
  • Supplied in 2009 and has been in use since.

    • ISRO

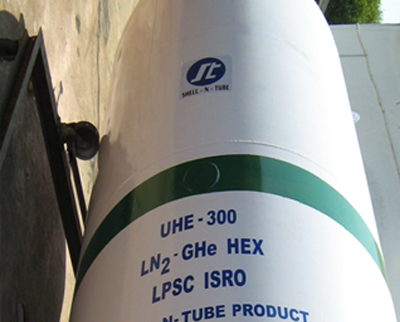

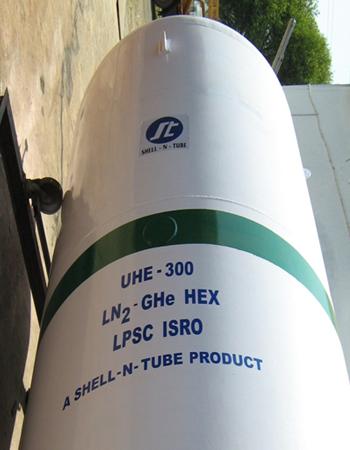

    LN2 - GHe HEAT EXCHANGER

    LN2-GHe HEAT EXCHANGER

    ISRO, Mahendragiri

  • LN2 Heat Exchanger involving LN2 Tank of capacity 10560 litres for cooling two stream of gaseous helium with LN2 as coolant.
  • One coil at 2 MPa(a) and other at 33 MPa(a).
  • Inlet - 290 to 320 K & outlet at 79 K with
  • GHe flow rate of 36 gm/s at pressure
  • 0.8 MPa(a) in one coil & 12 gm/s at pressure 2 MPa(a) in the second coil.
  • Salient details of LN2 vessel are given below

    • ISRO

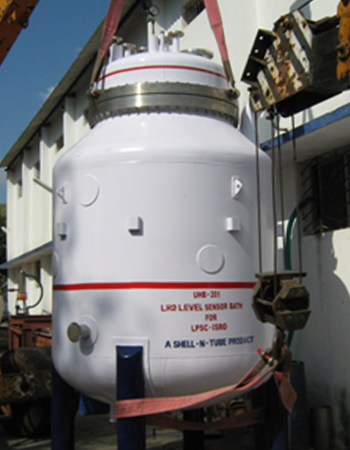

    LH2 Level Sensor Bath

    LH2 Level Sensor Bath

    ISRO, Mahendragiri

    Shankar Ghosh

  • LH2 Level Sensor Bath involving 3500 litres LN2 Tank of with neck opening of 1200 mm
  • Used for calibration of various types of Level Sensors in LH2 ambience.
  • It is a vertical super insulated vessel with nonstandard body flange of 1200NB.
  • The cylindrical shell and bottom dish have common vacuum jacket and top dish has separate vacuum jacket.
  • This non-conventional vessel called for ingenious design of connection between inner vessel and the vacuum jacket with minimum heat in-leak.
  • Connection without bellow which considerably improves its long time reliability and at the same time minimizes the heat in-leak.
  • Supplied in 2009 and has been in use since.

    • Institute for Plasma Research

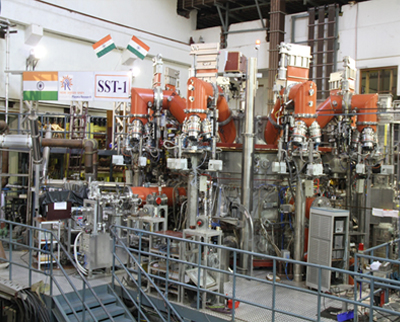

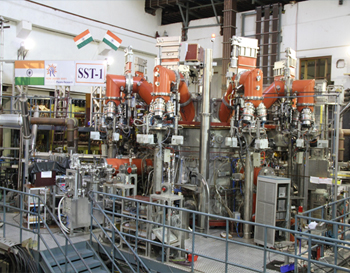

    Steady State Tokamak – 1

    Steady State Tokamak - 1

    Institute for Plasma Research, Ahmedabad

    Shankar Ghosh

    ISRO

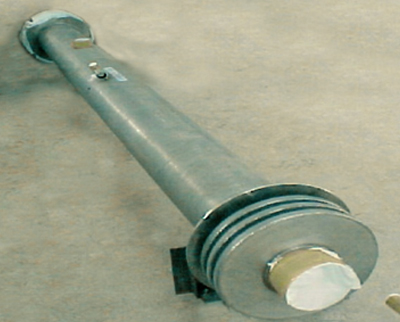

    LOX, LH2 Pipeline

    LOX, LH2 Pipeline

    ISRO, Mahendragiri

    Shankar Ghosh

    Air Liquide

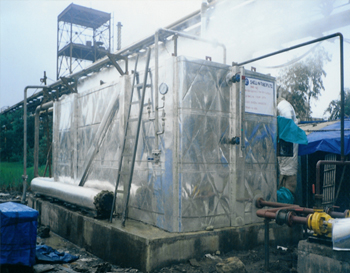

    Steam Bath Vaporizers

    Steam Bath Vaporizers

    Air Liquide, Mahendragiri

    Shankar Ghosh

    Pratisthan

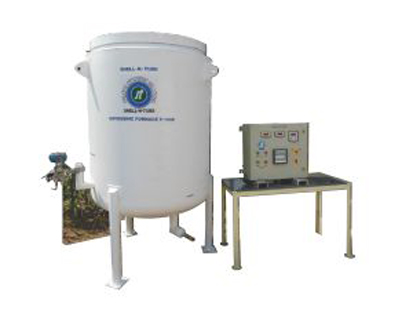

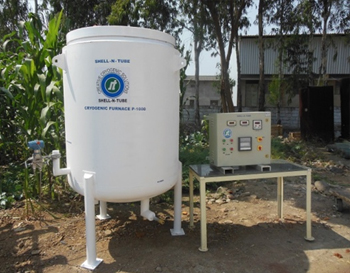

    Automated Cryogenic Metal Treatment Chamber

    Automated Cryogenic Metal Treatment Chamber

    Pratisthan

    Shankar Ghosh

    Suttatti Enterprises

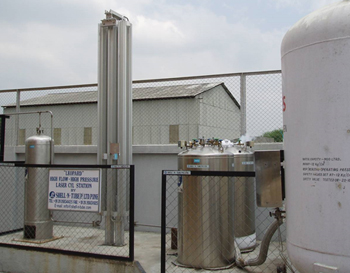

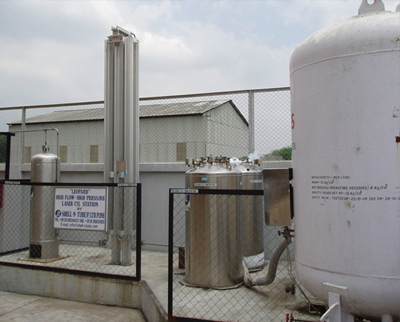

    Laser Cutting Liquid Nitrogen Delivery System

    Laser Cutting Liquid Nitrogen Delivery System

    Suttatti Enterprises, Pune

    Shankar Ghosh

    Indira Gandhi Centre for Atomic Research

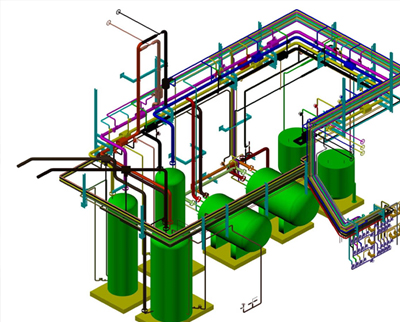

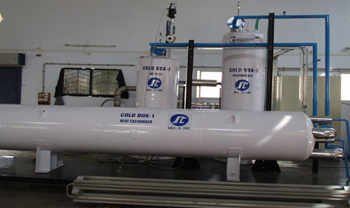

    Cover Gas Purification System

    Cover Gas Purification System

    Indira Gandhi Centre for Atomic Research, Tamil Nadu

    Shankar Ghosh

    SNT

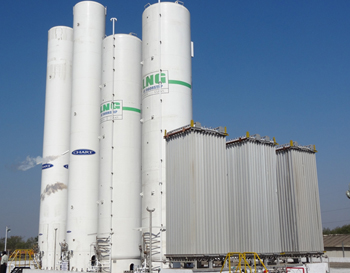

    LNG System Integration and Commissioning

    LNG System Integration and Commissioning

    SNT

    Shankar Ghosh

    ISRO

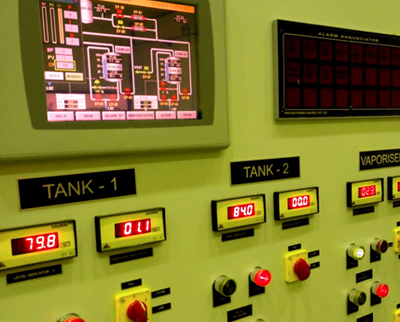

    Automated LN2-GN2 Supply for Thermo Vacuum Chamber

    Automated LN2-GN2 Supply for Thermo Vacuum Chamber

    ISRO, Bangalore

    Shankar Ghosh

    ISRO

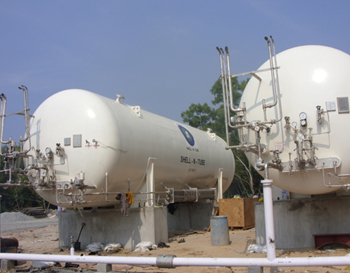

    LN2/GN2 System for Thermo Vacuum Chamber

    LN2/GN2 System for Thermo Vacuum Chamber

    ISRO, Thiruvananthapuram

    Shankar Ghosh

    Institute for Plasma Research

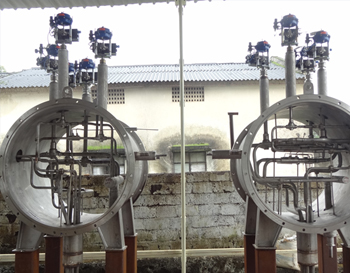

    Vacuum Insulated Valve Box

    Vacuum Insulated Valve Box

    Institute for Plasma Research, Ahmedabad.

    Shankar Ghosh

    Periscope

    Argon Cooling System for Periscope

    Argon Cooling System for Periscope

    Periscope.

    Shankar Ghosh

    BHAVINI

    Cover Gas Purification System

    Cover Gas Purification System

    BHAVINI, Tamil Nadu

    Shankar Ghosh
